Land Suitability Analysis for Agriculture Using GIS: Methods & Case Studies [2025]

Land Suitability Analysis for Agriculture Using GIS: Methods & Case Studies perfect for Professional GIS Users.

In an era of rapid population growth and increasing pressure on land resources, ensuring sustainable agricultural productivity is more important than ever. Land Suitability Analysis (LSA) using Geographic Information Systems (GIS) offers a modern and scientific approach to identifying the most appropriate areas for agriculture. This powerful tool supports soil scientists, agronomists, and land use planners in making data-driven decisions for sustainable land management.

In this blog post, we’ll explore:

What is Land Suitability Analysis?
Why use GIS in Land Suitability Assessment?
Key Methods and Criteria in GIS-based LSA
Case Studies from around the world
Applications in soil science and land use planning

Table of Contents

What is Land Suitability Analysis?

Land Suitability Analysis is the process of evaluating a piece of land to determine its fitness for a specific type of land use—in this case, agriculture. It involves comparing land characteristics (soil type, slope, rainfall, temperature, etc.) against the requirements of different crops.

Traditionally, this was done manually, but modern GIS technologies now allow for more accurate, faster, and spatially detailed assessments.

Why Use GIS for Land Suitability?

GIS brings several advantages to the table:

📍 Spatial Accuracy: Ability to map and analyze large areas with high precision.
📊 Data Integration: Combines multiple layers like soil maps, topography, climate, and land cover.
⚡ Speed & Efficiency: Reduces time and labor required in traditional field assessments.
🎯 Decision Support: Provides visual and analytical tools to guide sustainable agricultural development.

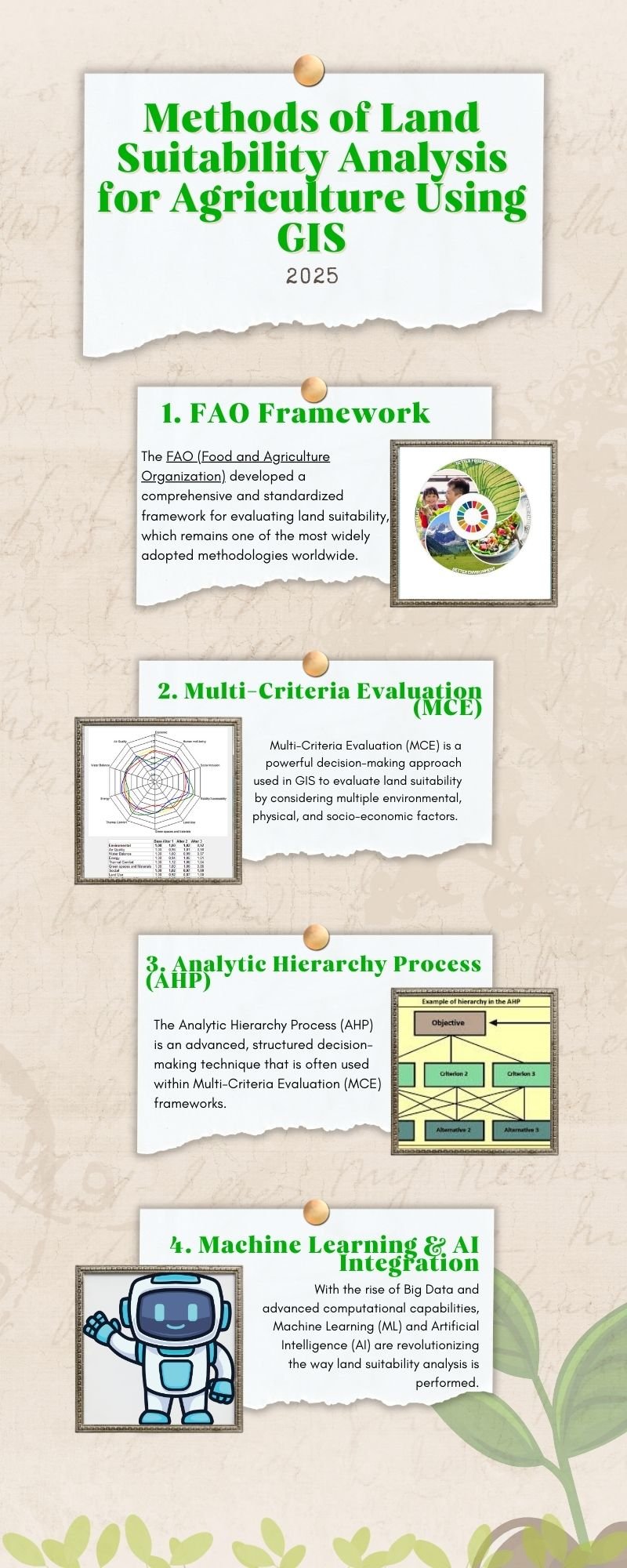

Methods of Land Suitability Analysis for Agriculture Using GIS

There are several standard methods used in Land Suitability Analysis for Agriculture Using GIS. These include:

1. FAO Framework

The FAO (Food and Agriculture Organization) developed a comprehensive and standardized framework for evaluating land suitability, which remains one of the most widely adopted methodologies worldwide. This framework assesses land based on how well it can support a specific type of land use—most commonly agricultural production.

FAO Suitability Classes:

The classification divides land into five main categories:

S1 – Highly Suitable
The land has no or only minor limitations for the intended use. It can produce high yields with minimal inputs and is ideal for sustainable agriculture.
S2 – Moderately Suitable
The land has some limitations (e.g., less optimal soil texture, slight slope, or moderate climate variation) that may reduce productivity or require moderate inputs like irrigation or fertilizers.
S3 – Marginally Suitable
The land has significant limitations that limit productivity. Crop yields may be lower, and it may require major improvements or input for viable farming.
N1 – Currently Not Suitable
The land is not suitable under present conditions, but could be made usable through significant investments or land improvements like drainage, soil amendment, or terracing.
N2 – Permanently Not Suitable
The land has limitations that are either too severe or impractical to overcome. Examples include rocky terrains, extremely steep slopes, or highly saline soils.

How GIS Enhances the FAO Framework

GIS technology plays a crucial role in implementing this framework at scale. Here’s how:

Spatial Analysis: GIS can map suitability classes across entire regions using soil, topography, and climate data.
Data Integration: Layers such as rainfall, soil pH, land cover, and elevation can be overlaid and analyzed simultaneously.
Visualization: The output is often presented as a Land Suitability Map, showing areas classified from S1 to N2, enabling easier interpretation for planners and stakeholders.
Decision Support: Governments, NGOs, and agricultural investors can use GIS-generated suitability maps for zoning, irrigation planning, and sustainable land management.

2. Multi-Criteria Evaluation (MCE)

Multi-Criteria Evaluation (MCE) is a powerful decision-making approach used in GIS to evaluate land suitability by considering multiple environmental, physical, and socio-economic factors. It is especially valuable when no single factor can determine land suitability, and a combination of variables must be assessed simultaneously.

At the heart of MCE lies the Weighted Overlay Analysis—a spatial analysis technique where each criterion is given a specific importance (weight) and then overlaid to create a composite suitability map.

How MCE Works in GIS:

Selection of Criteria (Factors):
The first step is to identify the key factors affecting land suitability for a particular crop or land use. Common criteria include:
- Soil pH – Influences nutrient availability and crop growth.
- Drainage – Affects water retention and root development.
- Rainfall – Determines water availability, essential for crop productivity.
- Slope – Influences erosion risk and ease of mechanized farming.
Standardization of Data:
All input layers are converted to a common scale, usually from 0 (unsuitable) to 1 (highly suitable), to ensure comparability. This process is essential because the original data might be in different units (e.g., mm for rainfall, % for slope).
Assigning Weights to Each Factor:
Each criterion is assigned a weight based on its relative importance to the target land use. For instance, rainfall may be given 40% weight for rice cultivation, while soil pH might receive 30%.
Weighted Overlay Analysis:
The standardized and weighted layers are combined using raster math in the GIS environment. The resulting output is a suitability map, which visually represents the degree of suitability of each area.
Classification of Results:
The output is typically classified into categories such as:
- Highly Suitable
- Moderately Suitable
- Marginally Suitable
- Unsuitable

Tools Commonly Used for MCE

ArcGIS Weighted Overlay Tool
QGIS Raster Calculator & SAGA/GRASS plugins
IDRISI’s Decision Support Module

Advantages of MCE

Flexible and customizable – Criteria and weights can be tailored to specific crops or regions.
Integrates expert knowledge – Local agricultural experts can help define appropriate weights.
Transparent process – Easy to document and justify each step in decision-making.

10 Emerging Trends in Geospatial Technology for Agriculture

Top 10 GIS-Based Dissertation Topics for Agricultural Students

3. Analytic Hierarchy Process (AHP)

The Analytic Hierarchy Process (AHP) is an advanced, structured decision-making technique that is often used within Multi-Criteria Evaluation (MCE) frameworks. Developed by Thomas L. Saaty, AHP provides a systematic and mathematical way to assign weights to various factors based on their relative importance—using pairwise comparisons.

Unlike arbitrary or expert-driven weighting methods, AHP minimizes subjectivity and increases consistency in the decision-making process. It’s especially useful in GIS-based land suitability analysis where multiple interdependent criteria must be evaluated.

How AHP Works:

Define the Objective:
For example, determining the most suitable land for rice cultivation in a particular region.
List the Criteria:
Factors like:
- Soil pH
- Rainfall
- Slope
- Drainage
- Temperature
Pairwise Comparison Matrix:
Each factor is compared two at a time in terms of their relative importance towards the goal. A scale of 1 to 9 is used, where:
- 1 = Equal importance
- 3 = Moderate importance
- 5 = Strong importance
- 7 = Very strong importance
- 9 = Extreme importance
For example, if rainfall is strongly more important than slope, it would get a value of 5 compared to slope.
Calculate Weights:
The matrix is normalized, and a priority vector is calculated—these are the final weights for each criterion.
Check Consistency Ratio (CR):
AHP includes a built-in check for consistency. If the CR is below 0.10, the comparisons are considered consistent. If not, the user is encouraged to revise the judgments.
Apply in GIS:
The derived weights are used in a weighted overlay within a GIS platform (like ArcGIS, QGIS, or IDRISI) to generate a land suitability map.

Benefits of AHP in GIS-Based Land Suitability Analysis:

✅ Reduces Bias: The structured comparison approach helps minimize arbitrary decisions.
✅ Consistency Check: CR ensures the logical consistency of judgments.
✅ Scientifically Robust: Suitable for complex agricultural decisions involving multiple variables.
✅ Adaptable: Works well with expert input and quantitative datasets.

4. Machine Learning & AI Integration

With the rise of Big Data and advanced computational capabilities, Machine Learning (ML) and Artificial Intelligence (AI) are revolutionizing the way land suitability analysis is performed. These technologies go beyond traditional methods by learning patterns from historical data and making highly accurate predictions based on complex relationships among multiple variables.

Machine learning models have proven especially useful in capturing non-linear interactions and hidden trends within datasets, which are often overlooked in rule-based GIS models.

Common Machine Learning Algorithms Used in Land Suitability Analysis:

Random Forest (RF):
A popular ensemble method that builds multiple decision trees and aggregates their results. Random Forest handles high-dimensional data well and is robust to overfitting.
Support Vector Machine (SVM):
An effective classification algorithm, SVM is used to differentiate between suitable and unsuitable land areas by finding the optimal boundary between classes.
Artificial Neural Networks (ANN):
Inspired by the human brain, ANNs can model complex, non-linear relationships between input variables (like soil properties, rainfall, and temperature) and the land suitability outcome.
Gradient Boosting Machines (GBM):
Another ensemble method that builds models sequentially and improves performance over time. Useful for refining predictions and increasing accuracy.

Data Inputs for ML-Based Suitability Models:

To train and test these models, various geospatial and tabular datasets are used, including:

Soil attributes (pH, organic matter, texture)
Climatic data (rainfall, temperature, evapotranspiration)
Topographic data (slope, elevation, aspect)
Historical crop yield data
Remote sensing indices (NDVI, EVI)

Workflow: How Machine Learning is Applied in GIS for Land Suitability

Data Collection & Preprocessing
All relevant geospatial and tabular datasets are collected, cleaned, and standardized.
Feature Selection
Important predictors are selected based on correlation, expert opinion, or algorithmic relevance.
Model Training
ML algorithms are trained using historical land use and productivity data.
Prediction & Mapping
The trained model is applied across the study region to generate land suitability prediction maps.
Validation
The model’s accuracy is evaluated using metrics like accuracy score, ROC-AUC, and confusion matrix, often with cross-validation.

Essential Data Layers for LSA in GIS

To conduct a proper land suitability analysis, the following spatial data are commonly used:

Layer	Description
Soil Texture & pH	Determines nutrient availability and root penetration
Elevation / DEM	Used to calculate slope and aspect
Rainfall & Temperature	Key for crop-specific requirements
Land Use/Land Cover	Identifies current usage and human activity
Proximity to Water Sources	Crucial for irrigation-dependent crops

Real-World Case Studies

1. Ethiopia: Maize Suitability in the Central Rift Valley

Researchers used AHP and GIS to assess land for maize cultivation. Slope, rainfall, and soil type were major influencing factors. The study found that 42% of the area was highly suitable, helping direct development efforts.

2. India: Rice Suitability in Tamil Nadu

In southern India, scientists combined Remote Sensing and GIS for rice suitability mapping. The study helped local farmers select optimal planting zones, leading to increased productivity and sustainable land use.

3. Nepal: GIS-based Suitability Mapping for High-Altitude Crops

In mountainous regions of Nepal, GIS was used to map areas suitable for buckwheat and barley. Slope and altitude were limiting factors, and GIS tools helped identify microzones for better agricultural planning.

Applications in Soil Science & Land Use Planning

GIS-based Land Suitability Analysis supports:

Soil Fertility Management: Helps identify areas that require soil amendments.
Precision Agriculture: Informs crop zoning and input application.
Land Use Policy Making: Guides governments in zoning, conservation, and agricultural investment.
Climate Change Adaptation: Assists in locating resilient areas for crop production under changing weather patterns.

Conclusion

Land Suitability Analysis for Agriculture using GIS is transforming how we plan and manage agricultural lands. By integrating spatial data, scientific methods, and modern technology, GIS offers a reliable path to sustainable land use and food security.

Whether you’re a soil scientist, agronomist, planner, or student, understanding and applying these GIS methods can significantly enhance your decision-making and contribute to a more productive agricultural future.

Frequently Asked Questions (FAQs)

Q1. What is the best GIS software for land suitability analysis?
ArcGIS, QGIS, and IDRISI are commonly used. QGIS is free and open-source, making it ideal for academic and professional use.

Q2. Can remote sensing data be used in land suitability analysis?
Yes, satellite data like Landsat, Sentinel, and MODIS are often used for land cover, vegetation, and moisture analysis.

Q3. Is LSA applicable only for crops?
No. It is also used for forestry, livestock, and even urban development planning.
